1000W LED摇头切割灯 AK-PF1000MH
Engineered for premium stage performances, featuring precise beam cutting and pattern projection. Ideal for theaters, opera houses, studios, and other venues requiring exceptional lighting precision. Equipped with a high-precision mechanical structure and intelligent thermal management system for silent operation and extended lifespan.
Certifications
Model:AK-PF1000MH
1000W LED Moving Head Cutting Light AK-PF1000MH
This high-power, multi-functional professional LED moving head light integrates precise light and shadow control, diverse special effects, intelligent operation, and wide-range accurate scanning. With rich color rendering, versatile effects, and stable performance, it is ideal for creating dynamic lighting in any professional stage production.
Suggested Retail Price
¥9000.00/ unit
This price includes 13% VAT and shipping.
Configuration Selection
Technical Specifications
Product Advantages & Technical Highlights
8-Blade Cutting System
独立电动切割刀片，0-100% 无级调节，支持任意角度旋转，精确塑造光斑形状
High-Definition Projection
专业成像透镜组，图案投射边缘锐利无虚边，支持投影片定制
均匀光斑
复眼透镜匀光系统，光斑中心与边缘照度均匀度≥85%，无黑点暗区
多棱镜效果
8-16 棱圆形棱镜，支持连续旋转和往复摆动，创造丰富光束效果
DMX512 Control
支持 RDM 双向通信协议，可实时反馈灯具状态和故障信息
Product Details
Rated Power: 980W/1080W/1400W
Light Source: 600W LED Module / 700W LED Module / 1000W LED Module
LED Lifespan: 20,000 hours
Color Temperature: 6800K
Color Rendering Index: Standard Mode Ra > 75, High CRI Mode Ra > 90
Luminous Flux: 24000LM-28000LM
Power Interface: 16A Power Plug
Diameter: 138MM
Signal Interface: 3-Pin XLR Connector
Control Mode: DMX512, RDM
Channel Mode: 36 Standard International DMX512 Channels
Display system: 2.7-inch touch LCD screen with Chinese and English support, 180-degree rotation
Fixed colors: 7 colors + white light
Color Mixing System: Independent CMY mixing system
Color temperature adjustment: Independent linear CTO2 800-600K control
Prism disc: 3 rotating prisms + 6 prism rows
Effect Panel: Simulates dynamic visuals like flickering flames and flowing water
Fixed pattern: 8 fixed pattern pieces + white circle
Rotating Pattern: 6 removable pattern pieces, outer diameter 27.9mm, effective diameter 16.5mm,, thickness 1.1mm
Cutting System: 4 independent blades, each dimmable and rotatable up to 90°
Atomization System: 0~100% Linear Atomization
Aperture system: smooth adjustment from 5% to 100%
Zoom system: 4.5°~50° linear focus
Dimming System: 0-100% Linear Adjustment
Strobe system: Frequency up to 25 Hz, with options for random strobe and pulse strobe. Horizontal scan: 540° (16-bit precision).
Vertical scan: 270° (16-bit precision)
Three channel control modes: 36 Channel / 42 Channel / 60 Channel
Ingress Protection Rating: IP20
Operating environment: 0-45°C
Product Dimensions: 510L*345W*800H(mm)
Box dimensions: 73*69*59CM
Air crate dimensions: 69*62*81CM
Net Weight: 40 kgs
Gross Weight: 43kgs
Product Design: Flame-retardant, heat-resistant, integrated foldable hook
Product specifications, images, and prices are for reference only and subject to change without notice. Please refer to the actual product.
Customers also bought these products
Rotating Beam Light AK-B391MH
2026 AK-391B-MH Upgrade Super Beam Light: Robust, pure beam with precise positioning. Dual prism stacking delivers rich color patterns and effects. Supports DMX & RDM two-way control. Ideal for high-end banquet halls, auditoriums, multi-purpose venues, and upscale bars to create dynamic lighting atmospheres.
Suggested Retail Price
4-LED Panel Light AK-P450
20W Dual-Color LED Panel Light with 3200K Warm + 6500K Cool White Adjustable Color Temperature, 25° Precision Spotlight Control, and DMX Multi-Mode Operation. Die-cast aluminum housing ensures durability. Wide voltage AC100-240V for global use. Ideal for stage performances, weddings, conference halls, live streaming studios, and broadcast filming. Delivers soft, uniform lighting for professional results—efficient setup, hassle-free operation.
Suggested Retail Price
300W LED Imaging Light AK-SP300
This 300W high-CRI COB film spotlight offers dual color temperature options, multi-angle lens compatibility, smooth dimming, and long-lasting durability. It supports DMX and other control modes, making it ideal for studios, TV stations, conference rooms, theaters, weddings, banquets, and various stage lighting applications.
Suggested Retail Price

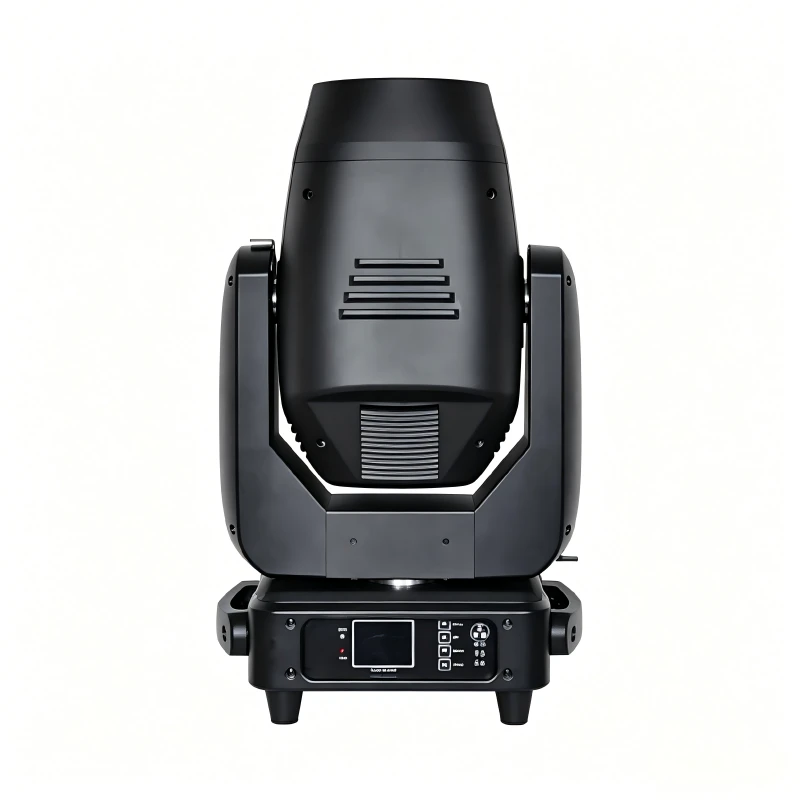

580W Oscillating Cutting Light AK-PF580MH
