Smart Lighting Control System - IK Lights

智慧照明控制系统

Professional intelligent lighting management platform built on a hybrid TCP/IP and ROLA architecture

System Architecture Proposal

Supports both TCP/IP distributed and TCP/IP+ROLA hybrid system architectures to meet diverse project requirements.

TCP/IP and ROLA Hybrid System

Suitable for project scenarios with difficult pipeline construction.

This solution is ideal for projects with challenging pipeline construction, such as crossing rivers, buildings, and streets.

Distribution box 1

Cross obstacles via Rola wireless communication

Distribution box 2

TCP/IP, UDP wired connection

Rola Wireless Communication

Cross major rivers and other obstacles

Network Switch + Smart Host

Central Control Core

Workstation

Central Control Computer

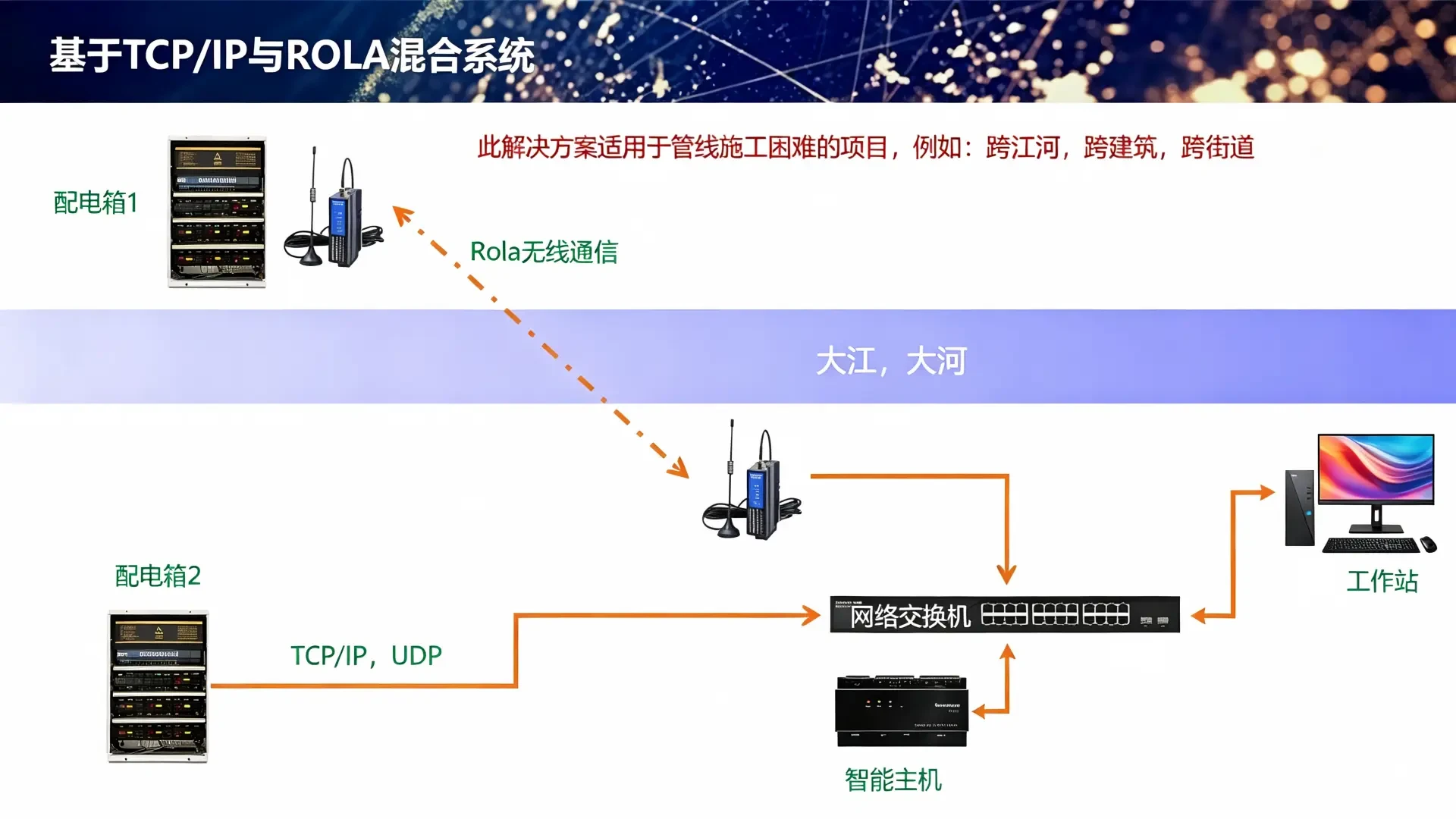

Hybrid System Architecture Diagram of TCP/IP and ROLA - Network Topology Schematic for Intelligent Lighting Control System

TCP/IP-based distributed system

Centralized multi-region control for large-scale projects

Control Terminal

Workstation
Wireless Tablet
Wall-Mounted Touchscreen

Network Transmission

Network Switch

TCP/IP, UDP

Smart Host

RS485 Communication

Execute Device

Distribution Box 1
Distribution Box 2
Distribution Box 3
Distribution Box 4
Distribution Box 5

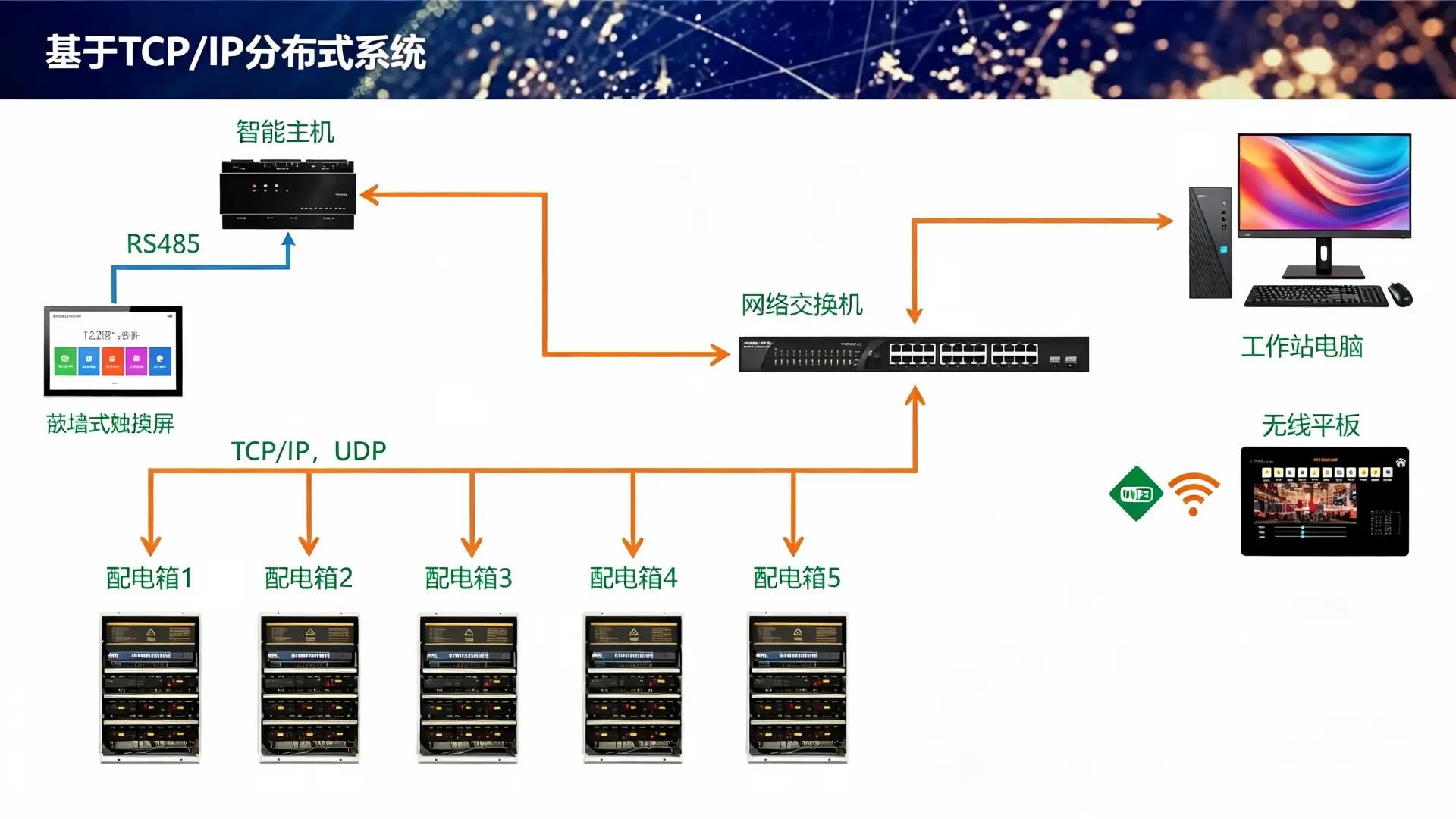

TCP/IP Distributed System Architecture Diagram - Multi-Region Centralized Control Network Topology

Control Terminal: Compatible with multiple operating systems

Supports major operating systems to meet diverse user preferences

Microsoft Windows

Apple macOS

Android

HarmonyOS

Linux

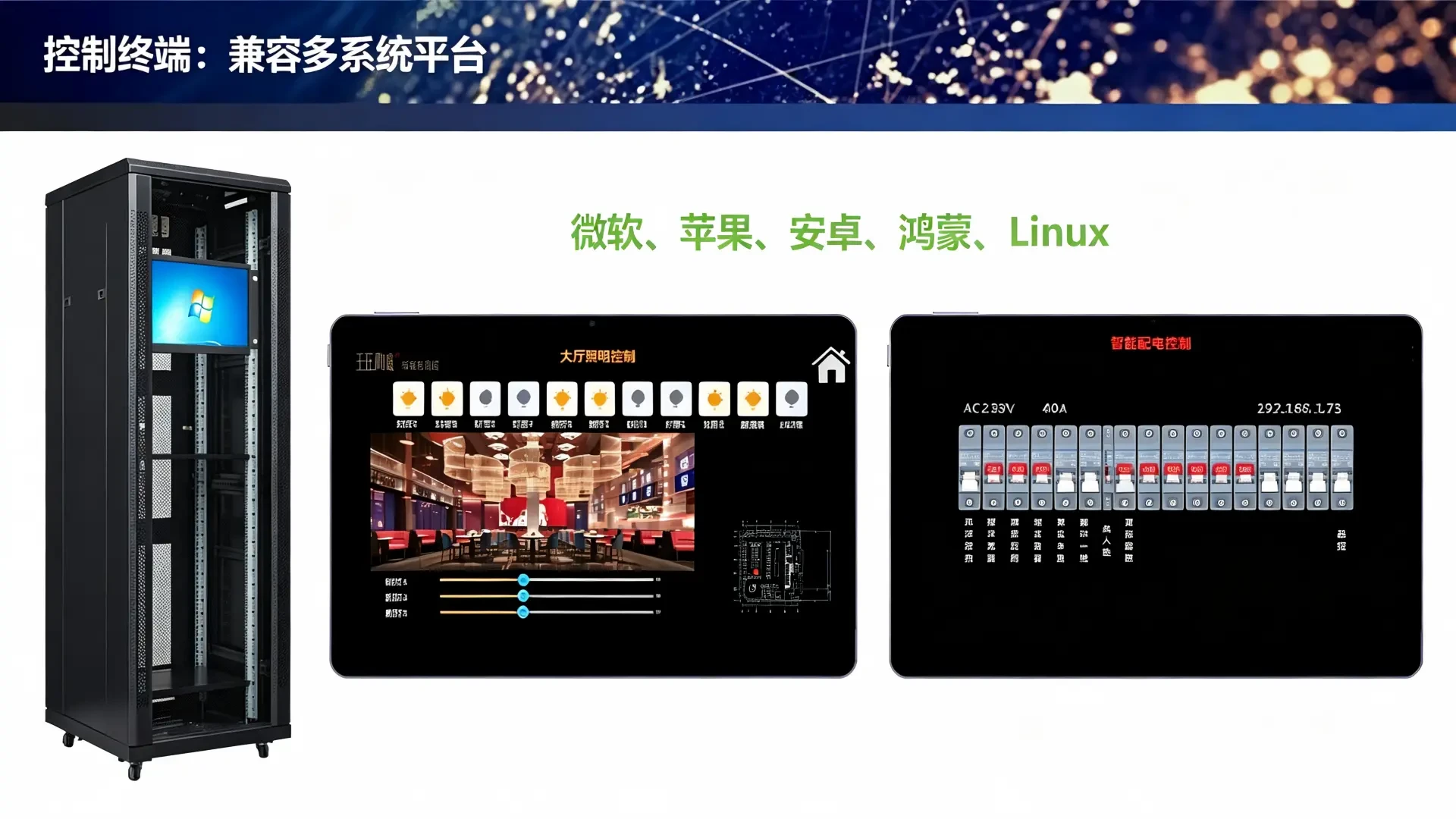

Control terminal supports multiple platforms: Windows, macOS, Android, HarmonyOS, and Linux.

Lobby Lighting Control Interface

  • • Visual lighting zone control
  • • Real-time brightness slider
  • • One-touch scene mode switching
  • • Flat map location display

Smart Power Distribution Control Interface

  • • Real-time voltage and current monitoring
  • • Circuit breaker status display
  • • IP Address Network Configuration
  • • Independent loop control

Application Scenarios

Case Study: Intelligent Lighting Control for Commercial Dining Establishments

Floor Plan Control Map

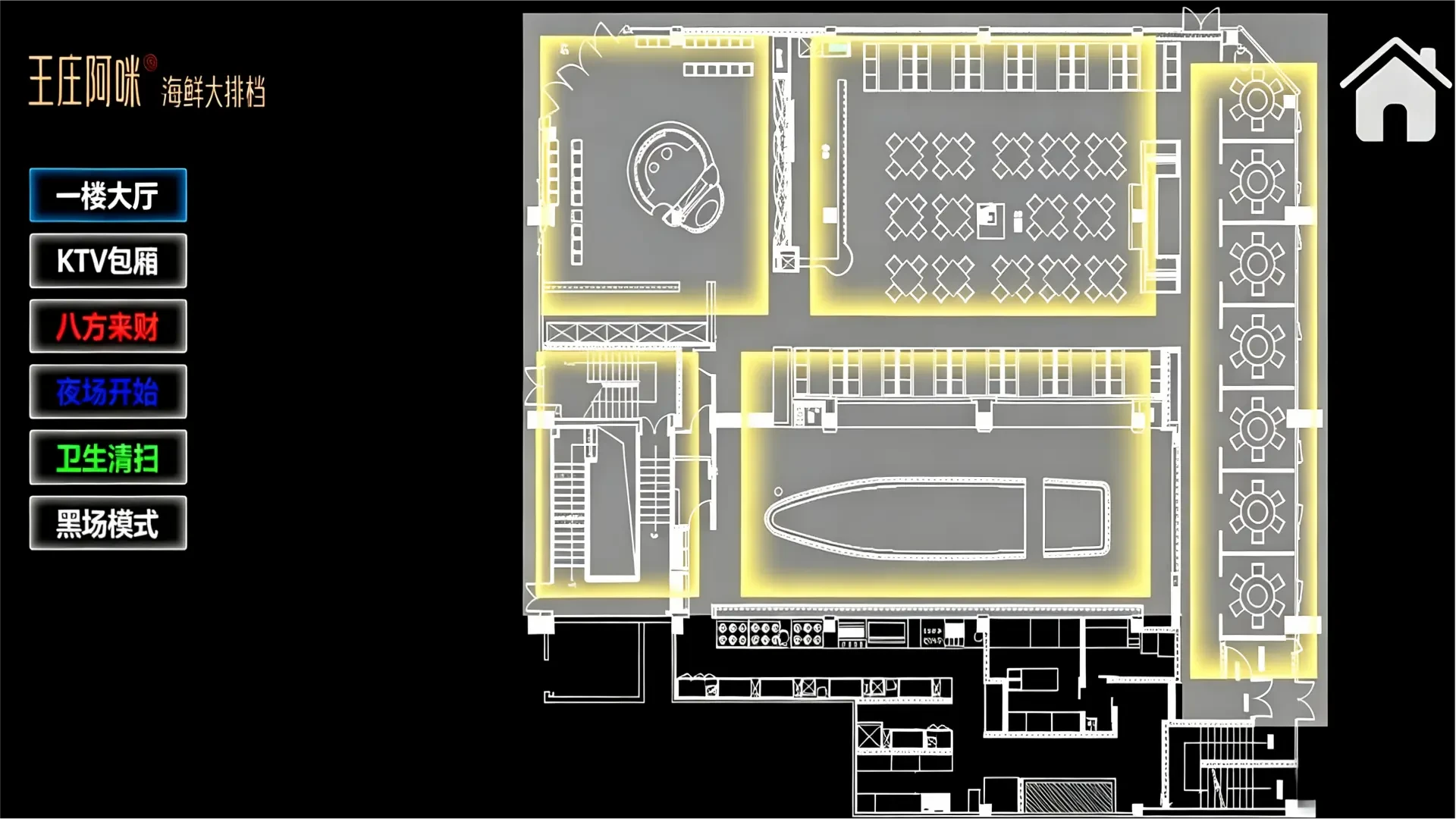

Floor Plan Control Diagram – Intelligent Lighting Zoning Layout for Commercial Dining Establishments
First Floor LobbyRunning
KTV Private RoomStandby
Wealth from all directionsin the scene

Lobby Lighting Control Panel

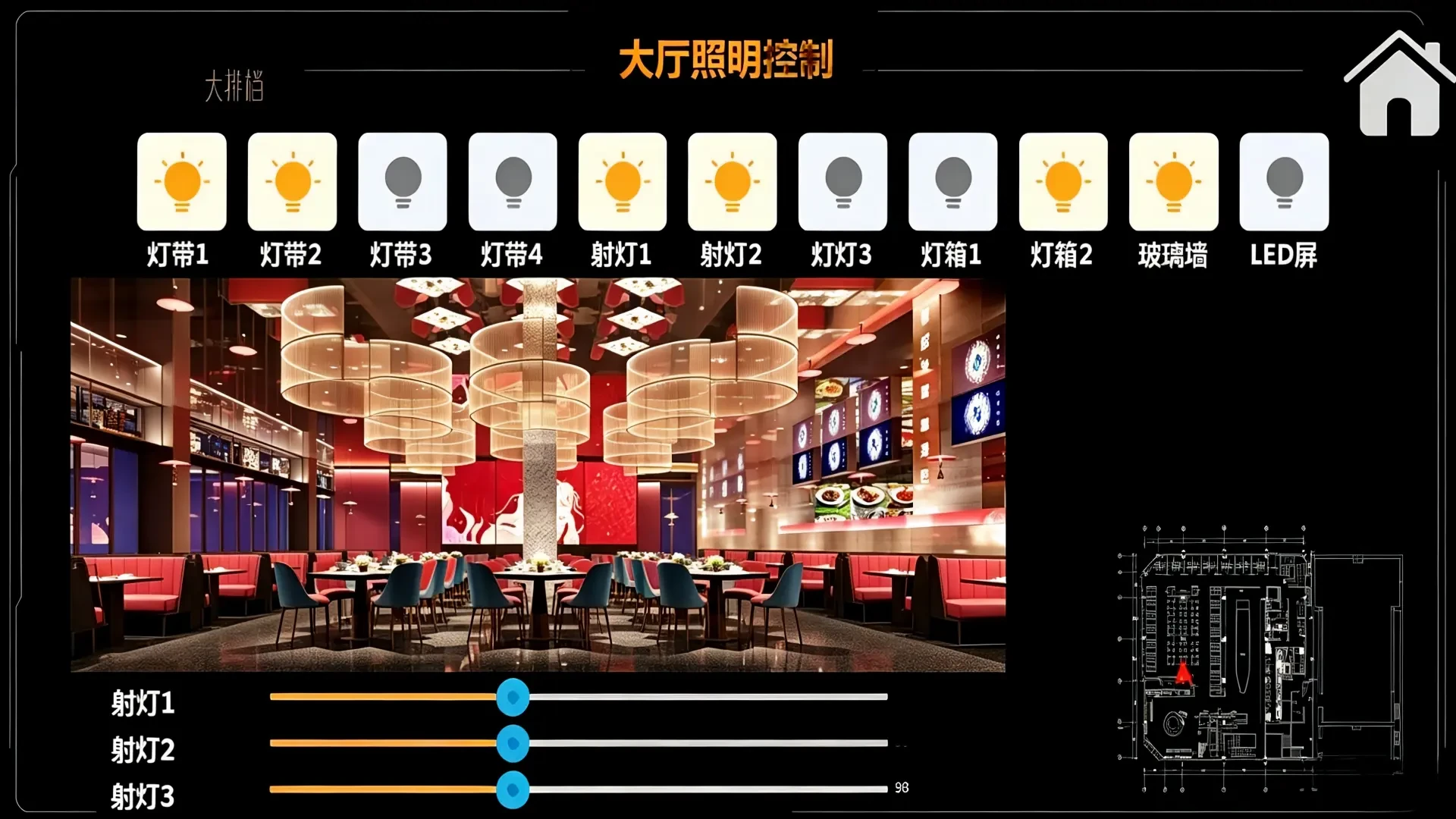

Lobby Lighting Control Interface - Visualized Light Zone Brightness Adjustment & Scene Mode Panel
Spotlight 1
75%
Spotlight 2
50%
Spotlight 3
25%

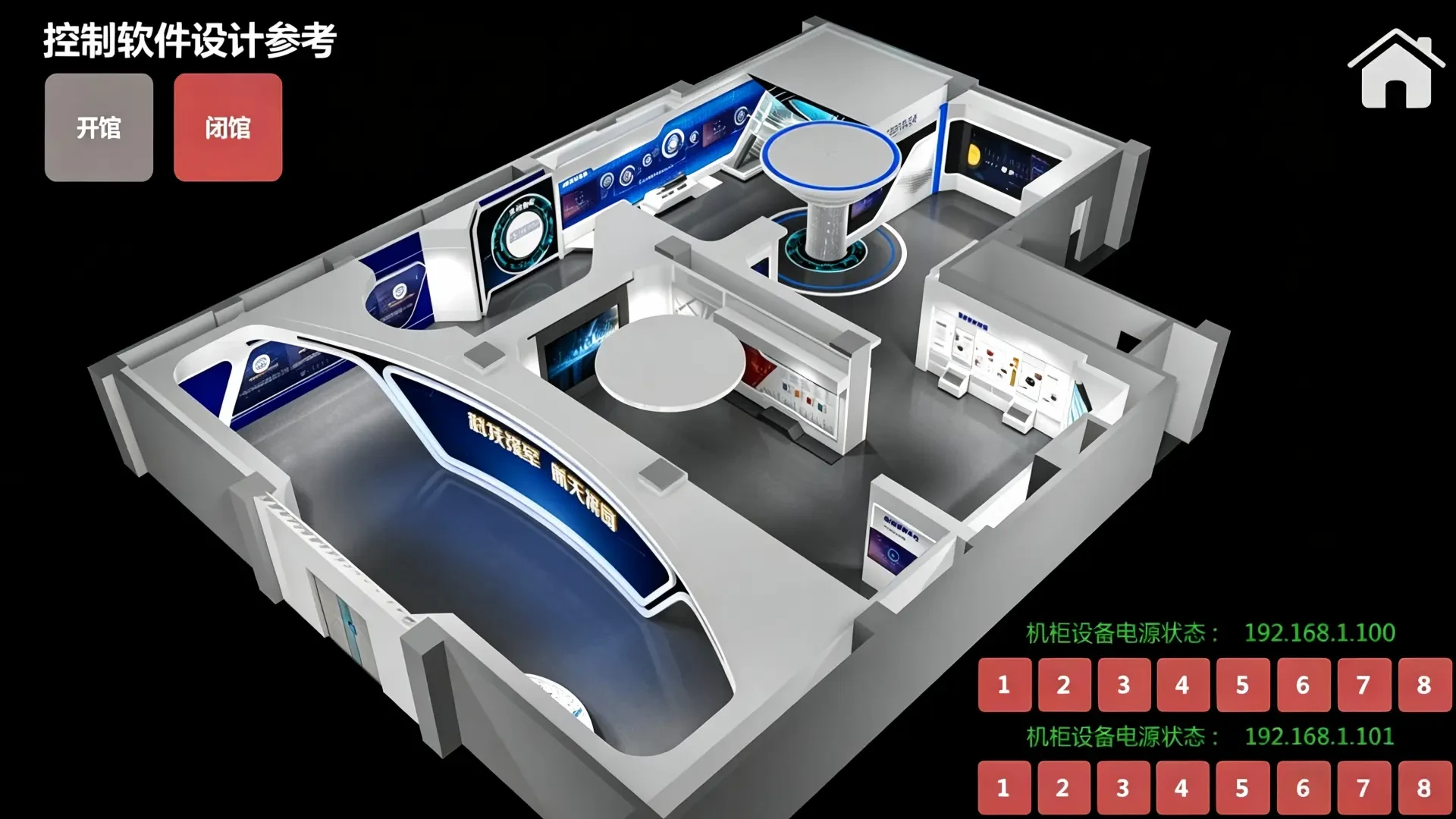

Control Software Design Reference – Smart Lighting Management System UI Example
